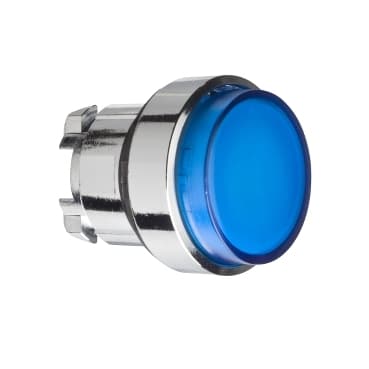

ZB4BW16
Product ID:24336
Updated: 2026/4/4
Key Features
- 1Withstand 10 million mechanical cycles for extreme durability. 2、Achieve IP66 protection against dust and water ingress. 3、Project clear blue illumination for high visibility. 4、Install easily with BA9s bulb compatibility and simple mounting. 5、Comply with REACH and RoHS for sustainable design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated push-button |
| Device short name | ZB4 | Product Compatibility | BA 9s |
| Bezel material | Chromium plated metal | Head type | Standard |
| Mounting diameter | 0.9 in (22.5 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | spring return |
| Operator profile | Blue projecting, unmarked | Operator additional information | With plain lens |
| cap/operator or lens colour | Blue | CAD overall width | 1.1 in (29 mm) |
| CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.3 in (32 mm) |
| Net Weight | 0.062 lb(US) (0.028 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Mechanical durability | 10000000 cycles | Electrical composition code | M7 6 single front mounting BA 9s<br />M8 6 single and double front mounting BA 9s<br />M9 2 single front mounting BA 9s and transformer |
| Device presentation | Basic sub-assemblies | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
| Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 62262 |
| Standards | IEC 60947-5-4<br />IEC 60947-5-5<br />UL 508<br />IEC 60947-5-1<br />JIS C8201-5-1<br />IEC 60947-1<br />CSA C22.2 No 14<br />JIS C8201-1 | Product Certifications | CSA<br />LROS (Lloyds register of shipping)<br />BV<br />UL Listed<br />DNV |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
