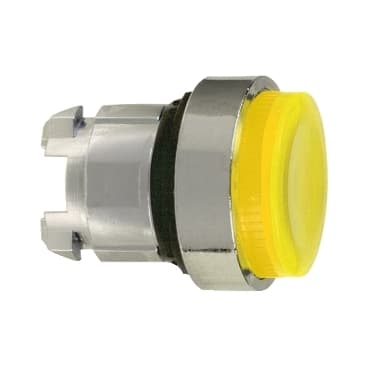

ZB4BW183S
Product ID:24469
Updated: 2026/7/15
Key Features
- 1Withstand harsh environments via IP66, IP69K, and NEMA 4X ratings.
- 2Simplify installation with quick assembly and multiple terminal options.
- 3Ensure versatile connectivity using screw, spring, Faston, or PCB terminals.
- 4Achieve energy efficiency and long life with a spring return mechanism.
- 5Meet global standards including IEC, UL, CCC, EAC, and marine approvals.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated push-button |
| Device short name | ZB4 | Product Compatibility | Integral LED |
| Bezel material | Chromium plated metal | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| Type of operator | spring return | Operator profile | Yellow projecting, unmarked |
| Operator additional information | With grooved lens | Environmental characteristic | High ambient lighting environment |
| CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
| CAD overall depth | 1.3 in (33 mm) | Net Weight | 0.057 lb(US) (0.026 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 10000000 cycles |
| Electrical composition code | M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED | Device presentation | Basic sub-assemblies |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| IK degree of protection | IK06 conforming to EN 50102 | Standards | CSA C22.2 No 14<br />UL 508<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />JIS C8201-1 |
| Product Certifications | GL<br />DNV<br />UL Listed<br />BV<br />CSA<br />LROS (Lloyds register of shipping) | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
