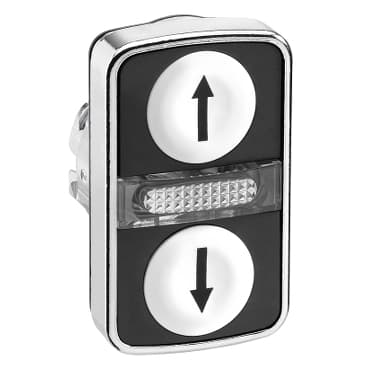

ZB4BW7A1714
Product ID:24556
Updated: 2026/4/4
Key Features
- 1Ensure secure mounting with a snap-fit head and body design. 2、Enhance visibility using a white flush illuminated double-headed pushbutton. 3、Serve machine manufacturers and panel builders across multiple industries. 4、Integrate seamlessly into panels with a Ø22mm mounting diameter. 5、Maintain consistent performance from -25°C to 70°C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated double-headed push-button |
| Product Compatibility | Integral LED | Device short name | ZB4 |
| Bezel material | Chromium plated metal | Head type | Standard |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Rectangular | Type of operator | spring return |
| Operator profile | White flush, down arrow black)<br />White flush, up arrow black) | Operators description | White ''up arrow'' - black ''down arrow'' |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 2.0 in (50 mm) |
| CAD overall depth | 1.2 in (30 mm) | Net Weight | 0.123 lb(US) (0.056 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Colour of marking | Black marking when white caps<br />White marking when green, red or black caps |
| Mechanical durability | 1000000 cycles | Electrical composition code | M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED |
| Device presentation | Basic sub-assemblies | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Electrical shock protection class | Class I IEC 61140 | IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | IEC 60947-5-5<br />IEC 60947-5-4<br />IEC 60947-5-1<br />UL 508<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />IEC 60947-1<br />JIS C8201-1 | Product Certifications | GL<br />CSA<br />LROS (Lloyds register of shipping)<br />DNV<br />UL Listed<br />BV |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
