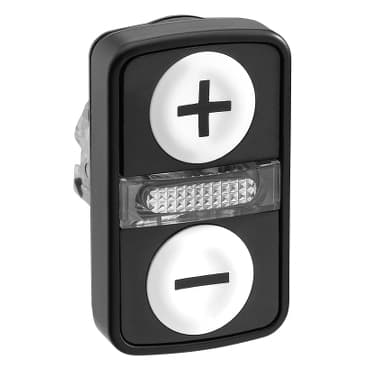

ZB4BW7A17157
Product ID:24559
Updated: 2026/4/4
Key Features
- 1Meet RoHS environmental compliance standards. 2、Ensure reliable switching with momentary spring return operation. 3、Integrate easily using the 22mm switch standard. 4、Enhance visibility with white flush illumination. 5、Rely on consistent quality from the Harmony XB4 series.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated double-headed push-button |
| Product Compatibility | Integral LED | Device short name | ZB4 |
| Bezel material | Black metal | Head type | Standard |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Rectangular | Type of operator | spring return |
| Operator profile | White flush, - black)<br />White flush, + black) | Operators description | White ''+'' - white ''-'' |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 2.0 in (50 mm) |
| CAD overall depth | 1.2 in (30 mm) | Net Weight | 0.123 lb(US) (0.056 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Colour of marking | Black marking when white caps<br />White marking when green, red or black caps |
| Mechanical durability | 1000000 cycles | Electrical composition code | M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED |
| Device presentation | Basic sub-assemblies | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Electrical shock protection class | Class I IEC 61140 | IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | CSA C22.2 No 14<br />UL 508<br />IEC 60947-5-1<br />JIS C8201-5-1<br />IEC 60947-5-4<br />IEC 60947-5-5<br />IEC 60947-1<br />JIS C8201-1 | Product Certifications | GL<br />BV<br />LROS (Lloyds register of shipping)<br />DNV<br />UL Listed<br />CSA |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
