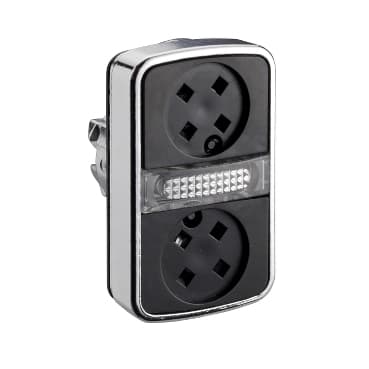

ZB4BW7A9
Product ID:24570
Updated: 2026/4/4
Key Features
- 1Construct a robust housing from chromium-plated metal for extreme durability. 2、Install and customize easily with a modular snap-fit design. 3、Enhance visibility with a central white pilot light for clear status indication. 4、Withstand harsh environments with an IP69 rating for water and dust resistance. 5、Meet stringent safety standards with UL 508 certification for industrial use.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated double-headed push-button |
| Product Compatibility | Integral LED | Device short name | ZB4 |
| Bezel material | Chromium plated metal | Head type | Standard |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Rectangular | Type of operator | spring return |
| Operator profile | without cap | Operators description | Black pushes without cap |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 2.0 in (50 mm) |
| CAD overall depth | 1.2 in (30 mm) | Net Weight | 0.123 lb(US) (0.056 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Colour of marking | White marking when green, red or black caps<br />Black marking when white caps |
| Mechanical durability | 1000000 cycles | Electrical composition code | M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED |
| Device presentation | Basic sub-assemblies | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Electrical shock protection class | Class I IEC 61140 | IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | IEC 60947-1<br />IEC 60947-5-5<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />IEC 60947-5-4<br />UL 508<br />JIS C8201-5-1<br />JIS C8201-1 | Product Certifications | CSA<br />LROS (Lloyds register of shipping)<br />BV<br />UL Listed<br />DNV |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
