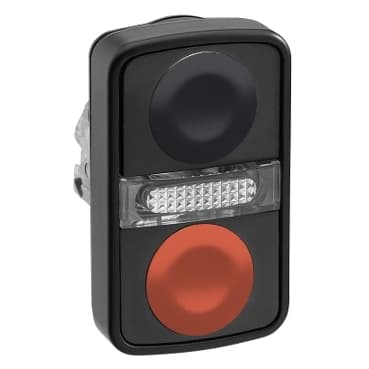

ZB4BW812743
Product ID:24498
Updated: 2026/4/4
Key Features
- 1Utilize protected LED modules for superior visibility. 2、Withstand harsh conditions with IP40 protection rating. 3、Integrate seamlessly using ZB4BZ009 body/collar. 4、Identify status via designated color codes. 5、Meet IEC standards for shock and EMC.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated double-headed push-button |
| Product Compatibility | Integral LED | Device short name | ZB4 |
| Bezel material | Chromium plated metal | Head type | Standard |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Rectangular | Type of operator | spring return |
| Operator profile | Black flush, unmarked<br />Red flush, unmarked | Operators description | Black unmarked - red unmarked |
| CAD overall width | 1.1 in (28 mm) | CAD overall height | 1.9 in (47 mm) |
| CAD overall depth | 1.1 in (28 mm) | Net Weight | 0.104 lb(US) (0.047 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Colour of marking | Black marking when white caps<br />White marking when green, red or black caps |
| Mechanical durability | 1000000 cycles | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class I IEC 60536 | IP degree of protection | IP40 |
| IK degree of protection | IK05 conforming to IEC 50102 | Standards | EN/IEC 60947-5-4<br />EN/IEC 60947-5-5<br />UL 508<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 |
| Product Certifications | CSA<br />GL<br />DNV<br />LROS (Lloyds register of shipping)<br />UL Listed<br />BV | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
