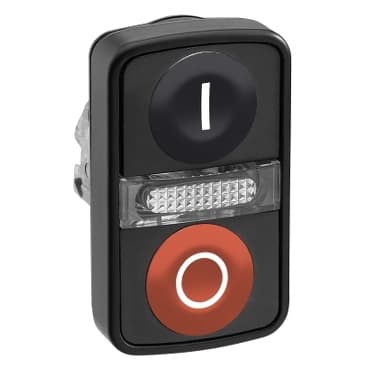

ZB4BW8227437
Product ID:24505
Updated: 2026/7/15
Key Features
- 1Ensure long-lasting performance with a robust and durable industrial-grade design.
- 2Enhance operational clarity using green and red illuminated indicators for clear visibility.
- 3Simplify panel integration with easy installation and simple mounting options.
- 4Access a comprehensive solution as part of the versatile Harmony XB4 series.
- 5Meet environmental standards with RoHS compliant and eco-friendly operations.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated double-headed push-button |
| Product Compatibility | Integral LED | Device short name | ZB4 |
| Bezel material | Black metal | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Rectangular |
| Type of operator | spring return | Operator profile | Red flush, O white)<br />Black flush, I white) |
| Operators description | Black ''I'' - red ''O'' | CAD overall width | 1.1 in (28 mm) |
| CAD overall height | 1.9 in (47 mm) | CAD overall depth | 1.1 in (28 mm) |
| Net Weight | 0.104 lb(US) (0.047 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Colour of marking | White marking when green, red or black caps<br />Black marking when white caps | Mechanical durability | 1000000 cycles |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class I IEC 60536 |
| IP degree of protection | IP40 | IK degree of protection | IK05 conforming to IEC 50102 |
| Standards | EN/IEC 60947-5-4<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />UL 508<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-1<br />JIS C8201-1 | Product Certifications | GL<br />BV<br />UL Listed<br />DNV<br />LROS (Lloyds register of shipping)<br />CSA |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
