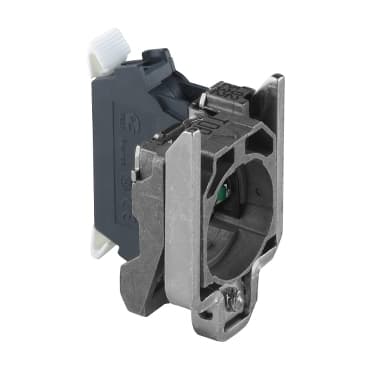

ZB4BZ1025TQ
Product ID:24602
Updated: 2026/7/15
Key Features
- 1Utilize Zamak fixing collar and silver alloy contacts for superior durability.
- 2Install quickly with a snap-fit design and single securing screw.
- 3Meet industrial standards with a 10A gG fuse and IP20 rating.
- 4Integrate seamlessly with Schneider ZB4, ZB5, and ZBE series switches.
- 5Ensure safety with UL Listing, CSA Certification, and RoHS Compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Complete body/contact assembly |
| Device short name | ZB4 | Fixing collar material | Zamak |
| Sale per indivisible quantity | 100 | Contacts type and composition | 1 NC |
| Contact operation | Slow-break | Contact block type | Single |
| Device Composition | Fixing collar<br />Body | Connections - terminals | Spring clamp terminals |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.9 in (47 mm) |
| CAD overall depth | 1.5 in (37 mm) | Terminals description ISO n°1 | (11-12)NC |
| Net Weight | 0.117 lb(US) (0.053 kg) | Contacts usage | Standard contacts |
| Positive opening | With EN/IEC 60947-5-1 appendix K | Operating travel | 0.06 in (1.5 mm) NC changing electrical state)<br />0.2 in (4.3 mm) total travel) |
| Operating force | 2 N NC changing electrical state | Mechanical durability | 5000000 cycles |
| Contacts material | Silver alloy (Ag/Ni) | Electrical durability | 10000000 cycles |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP degree of protection | IP20 IEC 60529 |
| Standards | EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />UL 508<br />EN/IEC 60947-5-4<br />JIS C8201-1 | Product Certifications | CSA<br />GL<br />UL<br />BV<br />DNV<br />LROS (Lloyds register of shipping) |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
