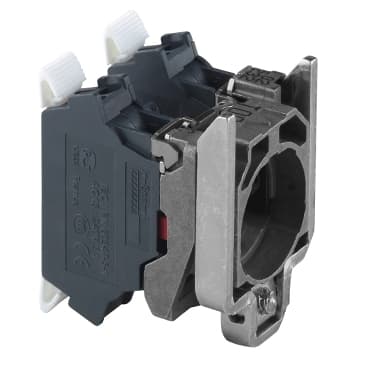

ZB4BZ1035TQ
Product ID:24611
Updated: 2026/7/15
Key Features
- 1Ensure reliable operation with 2NO slow-break contacts.
- 2Withstand harsh conditions with 5g vibration and 30g shock resistance.
- 3Save panel space using a compact 1.85"x1.18"x1.46" design.
- 4Simplify wiring and maintenance via spring clamp terminals.
- 5Meet EN/IEC 60947-1 and -5-1 industrial standards for compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Complete body/contact assembly |
| Device short name | ZB4 | Fixing collar material | Zamak |
| Sale per indivisible quantity | 100 | Contacts type and composition | 2 NO |
| Contact operation | Slow-break | Contact block type | Single |
| Device Composition | Body<br />Fixing collar | Connections - terminals | Spring clamp terminals |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.9 in (47 mm) |
| CAD overall depth | 1.5 in (37 mm) | Terminals description ISO n°1 | (13-14)NO |
| Net Weight | 0.137 lb(US) (0.062 kg) | Contacts usage | Standard contacts |
| Positive opening | Without | Operating travel | 0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) |
| Operating torque | 0.44 lbf.in (0.05 N.m) NO changing electrical state | Mechanical durability | 5000000 cycles |
| Contacts material | Silver alloy (Ag/Ni) | Electrical durability | 10000000 cycles |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP degree of protection | IP20 IEC 60529 |
| Standards | EN/IEC 60947-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-4<br />UL 508<br />EN/IEC 60947-5-5<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />JIS C8201-1 | Product Certifications | CSA<br />UL<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />GL |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
