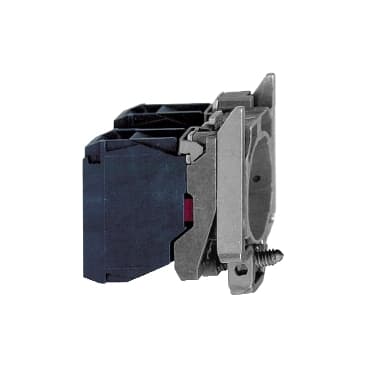

ZB4BZ1043
Product ID:24614
Updated: 2026/4/4
Key Features
- 1Achieve 10 million mechanical cycles for long-term reliability. 2、Utilize Faston connectors for secure and quick wiring. 3、Operate reliably in temperatures from -40°C to 70°C. 4、Meet IP20 protection standards for basic ingress safety. 5、Install on push buttons or selector switches for versatile control.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Complete body/contact assembly |
| Device short name | ZB4 | Fixing collar material | Zamak |
| Sale per indivisible quantity | 1 | Head type | Standard |
| Contacts type and composition | 2 NC | Contact operation | Slow-break |
| Contact block type | Single | Device Composition | Body<br />Fixing collar |
| Connections - terminals | Faston connector 1 x 6.35 mm<br />Faston connector 2 x 2.8 mm | CAD overall width | 1.2 in (30 mm) |
| CAD overall height | 1.9 in (47 mm) | CAD overall depth | 1.5 in (37 mm) |
| Terminals description ISO n°1 | (11-12)NC | Net Weight | 0.137 lb(US) (0.062 kg) |
| Contacts usage | Standard contacts | Positive opening | With IEC 60947-5-1 appendix K |
| Operating travel | 0.06 in (1.5 mm) NC changing electrical state)<br />0.2 in (4.3 mm) total travel) | Mechanical durability | 5000000 cycles |
| Contacts material | Silver alloy (Ag/Ni) | [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
| Electrical durability | 10000000 cycles | Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4<br />Λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4 |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP degree of protection | IP20 IEC 60529 |
| Standards | IEC 60947-5-1<br />IEC 60947-1<br />CSA C22.2 No 14<br />IEC 60947-5-5<br />IEC 60947-5-4<br />UL 508<br />JIS C8201-5-1<br />JIS C8201-1 | Product Certifications | BV<br />UL<br />CSA<br />DNV<br />LROS (Lloyds register of shipping) |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
