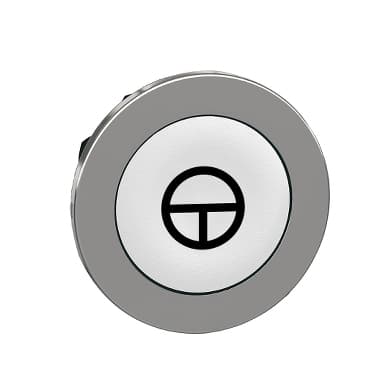

ZB4FA145
Product ID:24642
Updated: 2026/7/15
Key Features
- 1Withstand harsh conditions with IP66, IP67, and IP69K ingress protection ratings.
- 2Simplify panel integration using the flush mount design and 30mm cutout.
- 3Ensure reliable operation with the momentary actuation metal push button.
- 4Achieve long-lasting performance with the high-quality chromium-plated metal bezel.
- 5Meet environmental standards as the product is fully RoHS compliant.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB4F | Bezel material | Chromium plated metal |
| Mounting diameter | 1.2 in (30.5 mm) | Sale per indivisible quantity | 1 |
| Head type | Built-in-flush | Shape of signaling unit head | Round |
| Type of operator | spring return | Operator profile | White flush, T black) |
| CAD overall width | 1.4 in (36.6 mm) | CAD overall height | 1.4 in (36.6 mm) |
| CAD overall depth | 1.2 in (31 mm) | Mechanical durability | 10000000 cycles |
| Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653<br />Type 13 UL 50E<br />Type 12 UL 50E<br />Type 4 UL 50E<br />Type 4X UL 50E | IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />UL 508<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />CE<br />JIS C8201-1 | Product Certifications | UL Listed<br />CSA<br />CCC<br />EAC |
| Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />25 mm peak to peak 2…10 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
Specifications may be subject to change without notice
