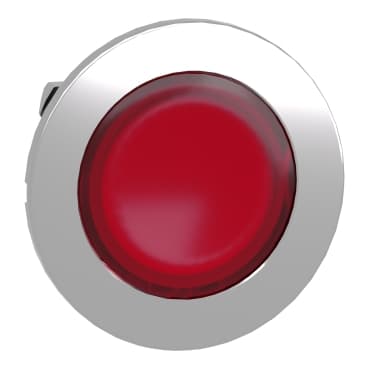

ZB4FA48
Product ID:24788
Updated: 2026/4/5
Key Features
- 1Withstand harsh conditions with a robust IP66-rated design. 2、Simplify installation and replacement for quick maintenance. 3、Ensure design flexibility with universal LED block compatibility. 4、Protect against dust and water ingress for reliable operation. 5、Enhance visibility using an ergonomic red flush-mounted actuator.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated push-button |
| Device short name | ZB4F | Bezel material | Chromium plated metal |
| Mounting diameter | 1.2 in (30.5 mm) | Sale per indivisible quantity | 1 |
| Head type | Built-in-flush | Shape of signaling unit head | Round |
| Type of operator | spring return | Operator profile | Red flush |
| Operator additional information | For insertion of legend | cap/operator or lens colour | Red |
| CAD overall width | 1.4 in (36.6 mm) | CAD overall height | 1.4 in (36.6 mm) |
| CAD overall depth | 1.2 in (31 mm) | Net Weight | 0.13 lb(US) (0.06 kg) |
| Mechanical durability | 10000000 cycles | Electrical composition code | M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />C3 6 single front mounting<br />C4 6 single and double front mounting<br />C14 2 single front mounting |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653<br />Type 13 UL 50E<br />Type 12 UL 50E<br />Type 4 UL 50E<br />Type 4X UL 50E |
| IK degree of protection | IK06 conforming to IEC 50102 | Standards | CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-5-4<br />UL 508<br />IEC 60947-1<br />JIS C8201-5-1<br />CE<br />JIS C8201-1 |
| Product Certifications | UL Listed<br />CSA<br />CCC<br />EAC | Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />25 mm peak to peak 2…10 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
