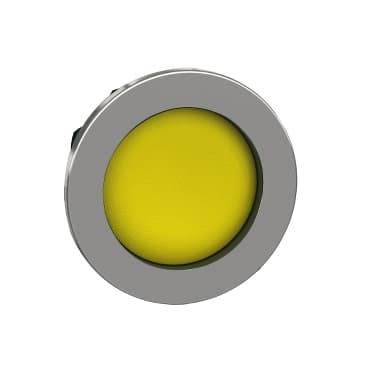

ZB4FA56
Product ID:24790
Updated: 2026/4/5
Key Features
- 1Operate reliably across a wide temperature range from -40°C to 70°C. 2、Ensure durability with a chromium-plated metal bezel construction. 3、Achieve high protection against dust and water with IP66, IP67, IP69K ratings. 4、Integrate seamlessly with the Harmony XB4 series pushbuttons. 5、Control easily thanks to the ergonomic push button head design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB4F | Bezel material | Chromium plated metal |
| Mounting diameter | 1.2 in (30.5 mm) | Sale per indivisible quantity | 1 |
| Head type | Built-in-flush | Shape of signaling unit head | Round |
| Type of operator | spring return | Operator profile | Yellow recessed, unmarked |
| CAD overall width | 1.4 in (36.6 mm) | CAD overall height | 1.4 in (36.6 mm) |
| CAD overall depth | 1.2 in (31 mm) | Mechanical durability | 10000000 cycles |
| Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653<br />Type 13 UL 50E<br />Type 12 UL 50E<br />Type 4 UL 50E<br />Type 4X UL 50E | IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />UL 508<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />CE<br />JIS C8201-1 | Product Certifications | UL Listed<br />CSA<br />CCC<br />EAC |
| Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />25 mm peak to peak 2…10 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
Specifications may be subject to change without notice
