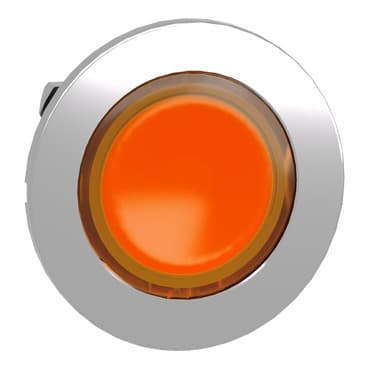

ZB4FV053
Product ID:24890
Updated: 2026/4/5
Key Features
- 1Integrate seamlessly with a built-in flush design. 2、Ensure durability with a chromium-plated metal body. 3、Provide clear visual feedback using orange LED illumination. 4、Achieve wide application compatibility with universal LED technology. 5、Protect against dust and water with an IP66 rating.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for pilot light |
| Product Compatibility | Universal LED | Device short name | ZB4F |
| Bezel material | Chromium plated metal | Mounting diameter | 1.2 in (30.5 mm) |
| Sale per indivisible quantity | 1 | Head type | Built-in-flush |
| Shape of signaling unit head | Round | cap/operator or lens colour | Orange |
| Operator additional information | With plain lens | CAD overall width | 1.4 in (36.6 mm) |
| CAD overall height | 1.4 in (36.6 mm) | CAD overall depth | 1.2 in (31 mm) |
| Net Weight | 0.128 lb(US) (0.058 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Electrical composition code | P1 front mounting integral LED<br />P2 front mounting integral LED and transformer | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653<br />Type 13 UL 50 E<br />Type 12 UL 50 E<br />Type 4 UL 50 E<br />Type 4X UL 50 E | IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | EN/IEC 60947-5-4<br />EN/IEC 60947-5-1<br />UL 508<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />CE<br />JIS C8201-1 | Product Certifications | UL Listed<br />CSA<br />CCC<br />EAC |
| Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />2 mm peak to peak 2…10 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
Specifications may be subject to change without notice
