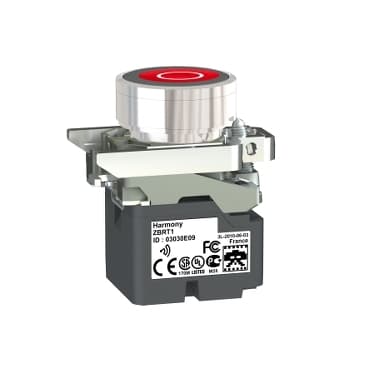

ZB4RTA432
Product ID:24839
Updated: 2026/4/5
Key Features
- 1Ensure long life with a chromium-plated bezel and Zamak body. 2、Eliminate cables to slash installation time and costs. 3、Deploy anywhere with an IP65 protection rating. 4、Rely on 1,000,000 operations for proven reliability. 5、Facilitate ease of use via a spring-return operating mode.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Wireless and batteryless transmitter |
| Device short name | XB5R | Bezel material | Chromium plated metal |
| Fixing collar material | Zamak | Mounting diameter | 0.9 in (22 mm) |
| Transmission frequency | 2405 MHz | emission class | 5M00G7W |
| Antenna type | Omnidirectional | Shape of signaling unit head | Round |
| Type of operator | spring return push-button with transmitter | Operator profile | Red flush, O white) |
| Max power consumption in W | 1 mW | Number of Channels | 16 |
| Modulation technique | O-QPSK | Bandwidth | 5 MHz |
| Antenna gain | 0 dBi | Embedding Depth | 1.7 in (42 mm) |
| CAD overall height | 1.6 in (41.5 mm) | CAD overall width | 1.2 in (30 mm) |
| CAD overall depth | 1.7 in (43 mm) | Net Weight | 0.099 lb(US) (0.045 kg) |
| Operating travel | 0.2 in (4.3 mm) total travel) | Operating force | 10 N C/O changing electrical state |
| Mechanical robustness | Free fall resistance 1000 mm IEC 60068-2-32 | Standards | CSA C22.2 No 14<br />IEC 60947-1<br />IEC 60947-5-1<br />UL 508 |
| Radio agreement | ANATEL<br />ARIB T66<br />FCC<br />ICASA<br />RSS | Communication port protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
| Maximum sensing distance | 328.08 ft (100 m) in free field<br />82.02 ft (25 m) transmitter in a plastic box type XAL D and receiver in a metal enclosure<br />984.3 ft (300 m) transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna | Acquisition time | 2 ms |
| Response time | < 2 ms | Emission Power | 3 mW |
| Fixing mode | Fixing screw beneath head 7.08…10.6 lbf.in (0.8…1.2 N.m) | Electrical composition code | PW1 |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Relative humidity | 95 % -40…158 °F (-40…70 °C) without condensation |
| IP degree of protection | IP66 IEC 60529 front face)<br />IP67 IEC 60529 front face)<br />IP69 IEC 60529 front face)<br />IP69K IEC 60529 front face) | IK degree of protection | IK03 conforming to IEC 50102 |
| Mechanical durability | 1000000 cycles | Shock resistance | 25 gn 6 ms) 6000 shocks IEC 60068-2-27<br />30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration resistance | 5 gn 11…500 Hz)IEC 60068-2-6<br />+/- 10 mm 2…11 Hz)IEC 60068-2-6 | Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2<br />Electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2<br />Susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3<br />Susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3 |
| Product Certifications | BT 2006/95/EC<br />C-tick<br />GOST<br />UL<br />CSA | Directives | 1999/5/EC - R&TTE directive<br />2004/108/EC - electromagnetic compatibility |
