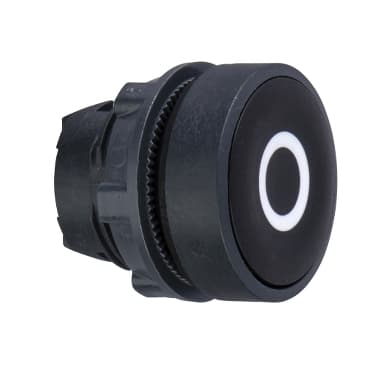

ZB5AA232
Product ID:24903
Updated: 2026/4/5
Key Features
- 1Provide an ergonomic interface for easy and precise control. 2、Ensure compatibility with the Harmony XB5 complete push button series. 3、Feature a 22mm diameter with a reliable spring return mechanism. 4、Deliver trusted quality as a genuine Schneider Electric component. 5、Guarantee safety with RINA, UL, GL, BV, LROS certifications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB5 | Bezel material | Dark grey plastic |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | spring return |
| Operator profile | Black flush, O white) | CAD overall width | 1.1 in (29 mm) |
| CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.1 in (28 mm) |
| Net Weight | 0.040 lb(US) (0.018 kg) | Mechanical durability | 10000000 cycles |
| Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK03 conforming to IEC 50102 | Standards | UL 508<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />IEC 60947-5-4<br />IEC 60947-1<br />JIS C8201-1 |
| Product Certifications | BV<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />UL Listed | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Specifications may be subject to change without notice
