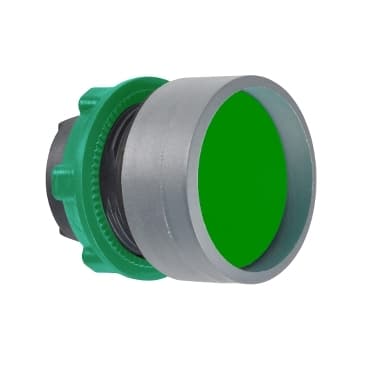

ZB5AA36C0
Product ID:24937
Updated: 2026/7/16
Key Features
- 1Withstand extreme environments with IP66 to IP69K protection.
- 2Install quickly with one-hand assembly and independent front element.
- 3Meet IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14 standards.
- 4Ensure long-term reliability with 5 million cycle testing.
- 5Deploy in marine and demanding industrial applications with certification.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB5 | Bezel material | Plastic colour plated grey |
| Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| Type of operator | spring return | Operator profile | Green recessed, unmarked |
| Operator additional information | High guard | CAD overall width | 1.1 in (29 mm) |
| CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.2 in (31 mm) |
| Net Weight | 0.04 lb(US) (0.02 kg) | Mechanical durability | 10000000 cycles |
| Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP67 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | IEC 60947-5-1<br />CSA C22.2 No 14<br />UL 508<br />IEC 60947-1<br />JIS C8201-5-1<br />IEC 60947-5-4<br />JIS C8201-1 | Product Certifications | DNV<br />CSA<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Specifications may be subject to change without notice
