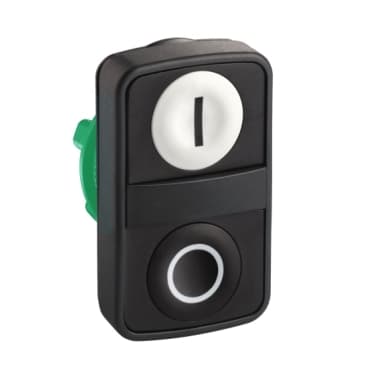

ZB5AA7121
Product ID:24954
Updated: 2026/7/16
Key Features
- 1Ensure durability and safety with a high-quality double insulated plastic bezel.
- 2Identify input and output positions clearly using standard I/O symbols.
- 3Protect against dust and water ingress with a robust IP66 rating.
- 4Operate easily and save panel space thanks to the flat button shape.
- 5Deploy reliably across environments with a -40°C to 70°C temperature range.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for double-headed push-button |
| Device short name | ZB5 | Bezel material | Dark grey plastic |
| Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Rectangular |
| Type of operator | spring return | Operator profile | Black flush, O white)<br />White flush, I black) |
| Operators description | White ''I'' - black ''O'' | CAD overall width | 1.2 in (30 mm) |
| CAD overall height | 2.0 in (50 mm) | CAD overall depth | 1.2 in (30 mm) |
| Net Weight | 0.051 lb(US) (0.023 kg) | Colour of marking | Black marking when white caps<br />White marking when green, red or black caps |
| Mechanical durability | 1000000 cycles | Station name | XALD 1 cut-out |
| Electrical composition code | C3 6 single front mounting<br />C4 6 single and double front mounting<br />C14 2 single front mounting<br />SF2 2 single front mounting<br />SR2 2 single rear mounting | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP69K IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | JIS C8201-5-1<br />CSA C22.2 No 14<br />IEC 60947-5-4<br />IEC 60947-5-1<br />IEC 60947-1<br />UL 508<br />JIS C8201-1 | Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
