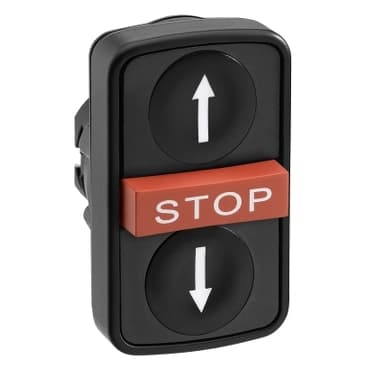

ZB5AA72124
Product ID:24955
Updated: 2026/4/5
Key Features
- 1Consolidate three pushbutton functions into a single Ø22mm panel cutout. 2、Achieve reliable operation with UL Listed safety certification. 3、Withstand harsh conditions using IP66, IP67, and IP69K environmental ratings. 4、Install easily in compact panels due to the space-saving design. 5、Save over 25% with our competitive sale price of $89.09.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for triple-headed push-button |
| Device short name | XB5 | Bezel material | Dark grey plastic |
| Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
| Shape of signaling unit head | Rectangular | Type of operator | spring return |
| Operator profile | Red projecting, STOP white)<br />Black flush, down arrow white)<br />Black flush, up arrow white) | Operators description | Black ''up arrow'' - black ''down arrow'' - red ''STOP'' |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 2.0 in (50 mm) |
| CAD overall depth | 1.4 in (35 mm) | Net Weight | 0.051 lb(US) (0.023 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Colour of marking | Black marking when white caps<br />White marking when green, red or black caps |
| Mechanical durability | 1000000 cycles | Station name | XALD 1 cut-out |
| Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting | Device presentation | Basic element |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II IEC 61140 | IP degree of protection | IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK05 conforming to IEC 50102 |
| Standards | JIS C8201-5-1<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />UL 508<br />IEC 60947-1<br />IEC 60947-5-4<br />JIS C8201-1 | Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
