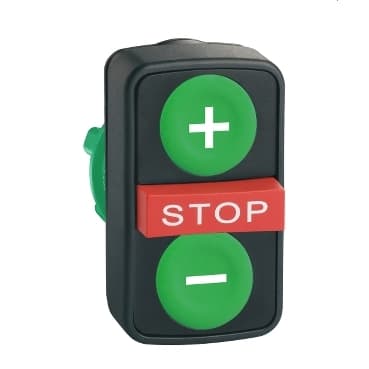

ZB5AA73135
Product ID:24959
Updated: 2026/4/5
Key Features
- 1Withstand 1,000,000 mechanical cycles for long-lasting reliability. 2、Utilize a versatile triple-head design with red and green buttons. 3、Install easily with a 22mm mounting diameter and clip-together components. 4、Resist high-pressure washdowns up to 1015 psi at 55°C. 5、Ensure robust operation in harsh industrial environments with durable plastic construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for triple-headed push-button |
| Device short name | XB5 | Bezel material | Dark grey plastic |
| Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
| Shape of signaling unit head | Rectangular | Type of operator | spring return |
| Operator profile | Red projecting, STOP white)<br />Green flush, - white)<br />Green flush, + white) | Operators description | Green ''+'' - green ''-'' - red ''STOP'' |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 2.0 in (50 mm) |
| CAD overall depth | 1.4 in (35 mm) | Net Weight | 0.051 lb(US) (0.023 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Colour of marking | Black marking when white caps<br />White marking when green, red or black caps |
| Mechanical durability | 1000000 cycles | Station name | XALD 1 cut-out |
| Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting | Device presentation | Basic element |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II IEC 61140 | IP degree of protection | IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK05 conforming to IEC 50102 |
| Standards | IEC 60947-5-4<br />UL 508<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />IEC 60947-1<br />IEC 60947-5-1<br />JIS C8201-1 | Product Certifications | BV<br />CSA<br />UL Listed<br />GL<br />DNV<br />LROS (Lloyds register of shipping) |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
