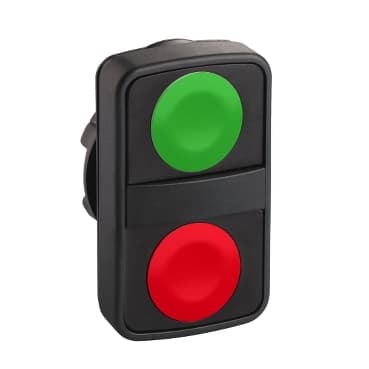

ZB5AA8134
Product ID:24966
Updated: 2026/4/5
Key Features
- 1Withstand up to 1,000,000 operating cycles for long-term reliability. 2、Achieve IP40 and NEMA 4X protection against dust and water ingress. 3、Identify status easily with green and red flush unmarked operators. 4、Resist shock and vibration, conforming to stringent IEC standards. 5、Ensure safe use with UL listing and CSA certification for various environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for double-headed push-button |
| Device short name | ZB5 | Bezel material | Plastic |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Rectangular | Type of operator | spring return |
| Operator profile | Green flush, unmarked<br />Red flush, unmarked | Operators description | Green unmarked - red unmarked |
| CAD overall width | 1.1 in (28 mm) | CAD overall height | 1.9 in (47 mm) |
| CAD overall depth | 1.3 in (32 mm) | Net Weight | 0.049 lb(US) (0.022 kg) |
| Colour of marking | Black marking when white caps<br />White marking when green, red or black caps | Mechanical durability | 1000000 cycles |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 60536 |
| IP degree of protection | IP40 IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | EN/IEC 60947-5-4<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />UL 508<br />JIS C8201-1 | Product Certifications | BV<br />CSA<br />LROS (Lloyds register of shipping)<br />UL Listed<br />GL<br />DNV |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
