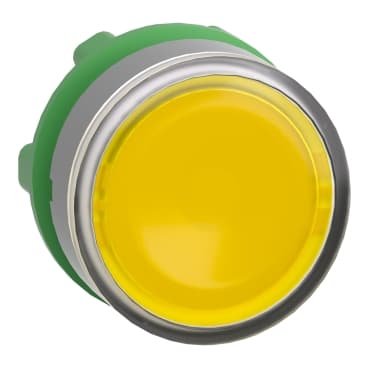

ZB5AA88C0
Product ID:24970
Updated: 2026/4/5
Key Features
- 1Ensure long-lasting performance with high-quality plastic construction. 2、Simplify installation using the snap-fit assembly design. 3、Achieve reliable operation with 100,000 mechanical cycles. 4、Protect against harsh conditions with an IP69K rating. 5、Optimize for repetitive use in demanding industrial environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5<br />Harmony XALF | Product or Component Type | Head for illuminated push-button |
| Device short name | ZB5 | Product Compatibility | Universal LED |
| Bezel material | Plastic colour plated grey | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Head type | Standard |
| Shape of signaling unit head | Round | Type of operator | spring return |
| Operator profile | Yellow flush, unmarked | Operator additional information | For insertion of legend |
| CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
| CAD overall depth | 1.2 in (30 mm) | Net Weight | 0.040 lb(US) (0.018 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 10000000 cycles |
| Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs | Cap/operator or lens colour | Yellow |
| Marking | Unmarked | Electrical composition code | M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />MR1 2 single rear mounting integral LED<br />C3 6 single front mounting<br />C4 6 single and double front mounting<br />C14 2 single front mounting<br />SF2 2 single front mounting<br />SR2 2 single rear mounting |
| Device presentation | Basic element | Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK03 conforming to IEC 62262 |
| Standards | CSA C22.2 No 14<br />UL 508<br />IEC 60947-5-4<br />GB 14048.5<br />IEC 60947-5-1<br />JIS C8201-5-1<br />IEC 60947-1<br />JIS C8201-1 | Product Certifications | BV<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />UL Listed |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
