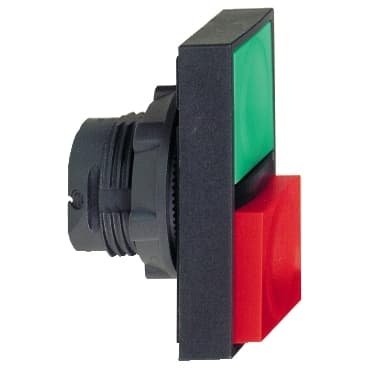

ZB5AA9234
Product ID:25018
Updated: 2026/7/16
Key Features
- 1Withstand 500,000 operating cycles for long-term reliability.
- 2Ensure reliable performance with IP65 protection in harsh environments.
- 3Connect easily with versatile terminals for 16-24 AWG cables.
- 4Resist mechanical shock per IEC 60068-2-27 standards.
- 5Protect against electrostatic discharge meeting IEC 61000-4-2.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for double-headed push-button |
| Device short name | ZB5 | Bezel material | Plastic |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Rectangular | Type of operator | spring return |
| Operator profile | Green flush, I white)<br />Red flush, O white) | Operators description | Green ''I'' - red ''O'' |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 2.0 in (50 mm) |
| CAD overall depth | 1.4 in (35 mm) | Net Weight | 0.060 lb(US) (0.027 kg) |
| Colour of marking | Black marking when white caps<br />White marking when green, red or black caps | Mechanical durability | 1000000 cycles |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 60536 |
| IP degree of protection | IP66 IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | UL 508<br />JIS C8201-5-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />JIS C8201-1 | Product Certifications | LROS (Lloyds register of shipping)<br />CSA<br />UL Listed<br />DNV<br />GL<br />BV |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
