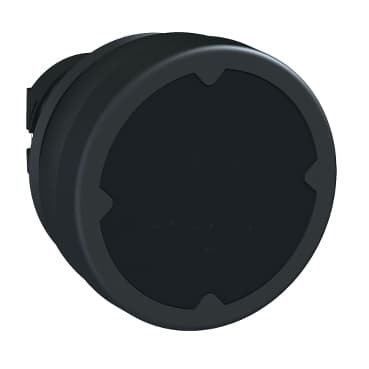

ZB5AC280
Product ID:25030
Updated: 2026/7/16
Key Features
- 1Withstand harsh environments with IP66, IP67, and IP69K ingress protection ratings.
- 2Ensure consistent operation via a reliable spring-return operator mechanism.
- 3Install flexibly with both horizontal and vertical mounting options available.
- 4Meet safety standards with Class II (IEC 61140) and IK03 (IEC 62262) conformity.
- 5Support sustainability goals as part of Schneider's Net Zero by 2050 commitment.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for push-button |
| Device short name | ZB5 | Bezel material | Black plastic |
| Head type | Standard | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| Type of operator | spring return | Operator additional information | Horizontal mounting<br />Vertical mounting |
| CAD overall width | 1.5 in (37 mm) | CAD overall height | 0.7 in (18.5 mm) |
| CAD overall depth | 1.5 in (37 mm) | Net Weight | 0.053 lb(US) (0.024 kg) |
| Resistance to high pressure washer | 0.01 psi (90 Pa) 180 °F (82.5 °C) | Operator profile | Black flush, unmarked |
| Mechanical durability | 10000000 cycles | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting |
| Device presentation | Basic element | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Electrical shock protection class | Class II IEC 61140 |
| IP degree of protection | IP66 IEC 60529<br />IP69K<br />IP67 | NEMA degree of protection | NEMA 4 UL 508<br />NEMA 13<br />NEMA 12 |
| IK degree of protection | IK03 conforming to IEC 62262 | Standards | UL 508<br />CSA C22.2<br />IEC 60947-1<br />IEC 60947-5-1 |
| Product Certifications | UL<br />CSA<br />CE | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
