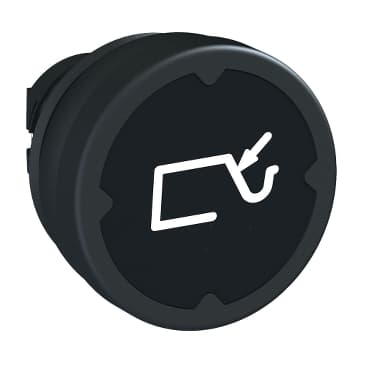

ZB5AC28010
Product ID:25032
Updated: 2026/7/16
Key Features
- 1Withstand harsh environments with IP66 protection and IK03 impact resistance.
- 2Operate reliably from -40°C to 70°C for ambient air.
- 3Fit space-constrained installations with a compact 37x18.5x37 mm size.
- 4Choose an eco-friendly Green Premium product for sustainable manufacturing.
- 5Ensure safety with comprehensive CSA, CE, and UL certifications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for push-button |
| Device short name | ZB5 | Bezel material | Black plastic |
| Head type | Standard | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| Type of operator | spring return | Operator additional information | Vertical mounting |
| CAD overall width | 1.5 in (37 mm) | CAD overall height | 0.7 in (18.5 mm) |
| CAD overall depth | 1.5 in (37 mm) | Net Weight | 0.053 lb(US) (0.024 kg) |
| Resistance to high pressure washer | 0.01 psi (90 Pa) 180 °F (82.5 °C) | Operator profile | Black flush, type H010 white) |
| Mechanical durability | 10000000 cycles | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Electrical shock protection class | Class II IEC 61140 | IP degree of protection | IP66 IEC 60529<br />IP69K<br />IP67 |
| NEMA degree of protection | NEMA 4 UL 508<br />NEMA 13<br />NEMA 12 | IK degree of protection | IK03 conforming to IEC 62262 |
| Standards | UL 508<br />IEC 60947-5-1<br />CSA C22.2<br />IEC 60947-1 | Product Certifications | CSA<br />CE<br />UL |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
