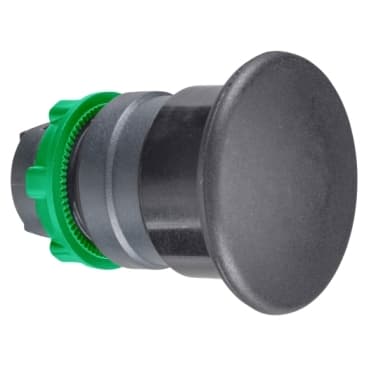

ZB5AC2TQ
Product ID:25034
Updated: 2026/4/5
Key Features
- 1Withstand harsh industrial environments with a robust and durable design. 2、Connect easily using screw clamp, Faston, spring terminal, or PCB. 3、Assemble and disassemble quickly for reduced maintenance downtime. 4、Support sustainability via recycled packaging and Schneider's green campaign. 5、Ensure long-lasting performance with high-quality construction materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB5 | Bezel material | Dark grey plastic |
| Head type | Standard | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 100 | Shape of signaling unit head | Round |
| Type of operator | spring return | Operator profile | Black mushroom Ø 40 mm, unmarked |
| CAD overall width | 1.6 in (40 mm) | CAD overall height | 1.6 in (40 mm) |
| CAD overall depth | 2.05 in (52 mm) | Net Weight | 0.101 lb(US) (0.046 kg) |
| Mechanical durability | 5000000 cycles | Station name | XALD 1 cut-out<br />XALK 1 cut-out |
| Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting | compatibility code | ZB5 |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | JIS C8201-5-1<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-1<br />UL 508<br />IEC 60947-5-4<br />JIS C8201-1 | Product Certifications | BV<br />LROS (Lloyds register of shipping)<br />DNV<br />CSA |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
