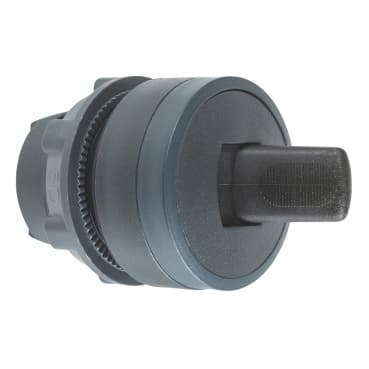

ZB5AD28
Product ID:25111
Updated: 2026/4/5
Key Features
- 1Operate machines easily with an ergonomic interface. 2、Control circuits precisely with a 2-position black lever. 3、Withstand harsh conditions using robust plastic construction. 4、Simplify maintenance through quick assembly and disassembly. 5、Connect flexibly to screw clamp, Faston, or PCB terminals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for selector switch |
| Device short name | ZB5 | Bezel material | Dark grey plastic |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Head type | Standard | Shape of signaling unit head | Round |
| Type of operator | stay put | Operator profile | Black toggle switch |
| Operator additional information | Black lever | Operator position information | 2 positions 90° |
| CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
| CAD overall depth | 1.8 in (45 mm) | Net Weight | 0.051 lb(US) (0.023 kg) |
| Mechanical durability | 500000 cycles | Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs |
| Electrical composition code | C11 3 single front mounting<br />C12 6 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting<br />C13 6 single and double front mounting | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
| IP degree of protection | IP66 IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK06 |
| Standards | IEC 60947-5-1<br />IEC 60947-5-4<br />CSA C22.2 No 14<br />UL 508<br />IEC 60947-1<br />JIS C8201-5-1<br />JIS C8201-1 | Product Certifications | DNV<br />UL Listed<br />LROS (Lloyds register of shipping)<br />BV<br />CSA |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
