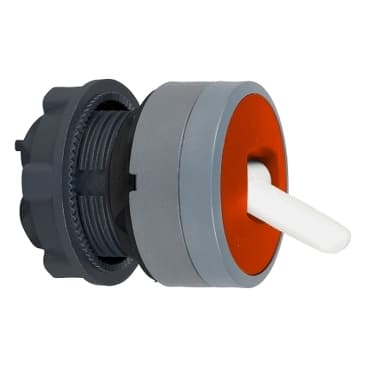

ZB5AD2804C0
Product ID:25114
Updated: 2026/4/5
Key Features
- 1Ensure robust performance with high-quality plastic for harsh environments. 2、Simplify installation using a self-cleavable orientation pin. 3、Achieve high protection with an IP66 rating for reliable operation. 4、Enable versatile mounting in 22mm panels for easy integration. 5、Guarantee durable performance up to 10 million operations.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for selector switch |
| Device short name | ZB5 | Bezel material | Plastic colour plated grey |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Head type | Standard | Shape of signaling unit head | Round |
| Type of operator | stay put | Operator profile | Black toggle switch |
| Operator additional information | Red lever | Operator position information | 2 positions 90° |
| CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
| CAD overall depth | 1.8 in (45 mm) | Net Weight | 0.051 lb(US) (0.023 kg) |
| Mechanical durability | 500000 cycles | Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs |
| Electrical composition code | C11 3 single front mounting<br />C12 6 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting<br />C13 6 single and double front mounting | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
| IP degree of protection | IP66 IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK06 |
| Standards | CSA C22.2 No 14<br />IEC 60947-1<br />JIS C8201-5-1<br />UL 508<br />IEC 60947-5-1<br />IEC 60947-5-4<br />JIS C8201-1 | Product Certifications | DNV<br />UL Listed<br />LROS (Lloyds register of shipping)<br />BV<br />CSA |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
