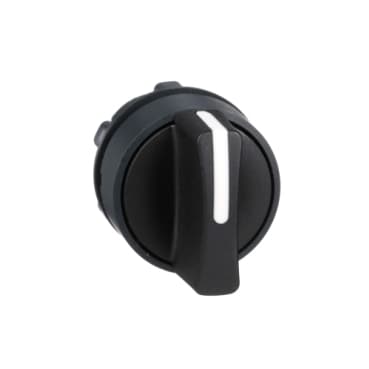

ZB5AD3
Product ID:25126
Updated: 2026/4/5
Key Features
- 1Withstand harsh environments including high-pressure cleaning and extreme temperatures. 2、Secure mounting with an ingenious snap-fit head and body locking system. 3、Ensure reliable operation with maintained contacts for various load applications. 4、Meet compliance with certifications for dust and water jet exposure. 5、Install easily with multiple terminal types like screw clamp or PCB.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for selector switch |
| Device short name | ZB5 | Bezel material | Dark grey plastic |
| Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| Type of operator | stay put | Operator profile | Black standard handle |
| Operator position information | 3 positions +/- 45° | CAD overall width | 1.1 in (29 mm) |
| CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.8 in (46 mm) |
| Net Weight | 0.037 lb(US) (0.017 kg) | Mechanical durability | 1000000 cycles |
| Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs | Electrical composition code | C3 6 single front mounting<br />C4 6 single and double front mounting<br />C5 5 single front mounting<br />C6 5 single and double front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II IEC 60536 | IP degree of protection | IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK06 conforming to IEC 50102 | Standards | IEC 60947-5-1<br />UL 508<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />IEC 60947-1<br />IEC 60947-5-4<br />JIS C8201-1 |
| Product Certifications | DNV<br />CSA<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
