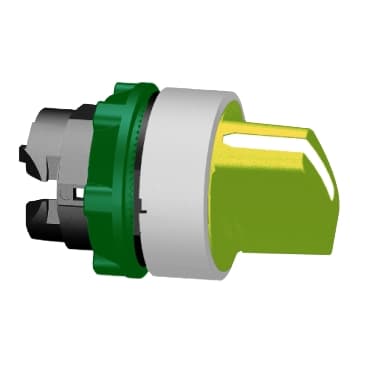

ZB5AD305C1
Product ID:25058
Updated: 2026/4/5
Key Features
- 1Certify for harsh IP69K-rated dust, water, and vibration resistance. 2、Comply with IEC standards and BV LROS, UL, DNV CSA GL certifications. 3、Operate effectively with an ergonomic round shape and standard handle. 4、Withstand 5 gn (2…500 Hz) and 30 gn (18 ms) impacts for durability. 5、Extend product life via Schneider's "Use Better, Use Longer" sustainability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for selector switch |
| Device short name | ZB5 | Bezel material | Plastic colour plated white |
| Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| Type of operator | stay put | Operator profile | Yellow standard handle |
| Operator position information | 3 positions +/- 45° | CAD overall width | 1.1 in (29 mm) |
| CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.8 in (46 mm) |
| Net Weight | 0.037 lb(US) (0.017 kg) | Mechanical durability | 1000000 cycles |
| Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs | Electrical composition code | C3 6 single front mounting<br />C4 6 single and double front mounting<br />C5 5 single front mounting<br />C6 5 single and double front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II IEC 60536 | IP degree of protection | IP67 IEC 60529 |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK06 conforming to IEC 50102 | Product Certifications | BV<br />LROS (Lloyds register of shipping)<br />UL Listed<br />DNV<br />CSA<br />GL |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
