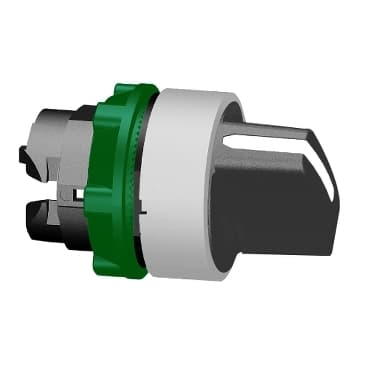

ZB5AD5C1
Product ID:25191
Updated: 2026/4/5
Key Features
- 1Operate comfortably with a round shape and black standard handle. 2、Withstand harsh conditions with an IP69K rating for impact, dust, water, and vibration resistance. 3、Install easily on compatible selector switch units using screw clamp terminals or plug-in connectors. 4、Meet NEMA 1/2/3/4/4X/13 standards and comply with UL 508, EN/IEC 60947-5-1, and CSA C22.2 No 14 certifications. 5、Operate reliably from -40°F to 158°F (-40°C to 70°C) with a mechanical durability of 1,000,000 cycles.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XALF<br />Harmony XB5 | Product or Component Type | Head for selector switch |
| Device short name | ZB5 | Bezel material | Plastic colour plated white |
| Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| Type of operator | To centre spring return | Operator profile | Black standard handle |
| Operator position information | 3 positions +/- 45° | CAD overall width | 1.1 in (29 mm) |
| CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.8 in (46 mm) |
| Net Weight | 0.037 lb(US) (0.017 kg) | Mechanical durability | 1000000 cycles |
| Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs | Electrical composition code | C3 6 single front mounting<br />C4 6 single and double front mounting<br />C5 5 single front mounting<br />C6 5 single and double front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II IEC 60536 | IP degree of protection | IP67 IEC 60529 |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK06 conforming to IEC 50102 | Product Certifications | UL Listed<br />GL<br />LROS (Lloyds register of shipping)<br />DNV<br />BV<br />CSA |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
