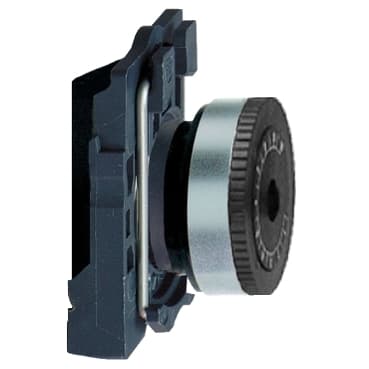

ZB5AD922TQ
Product ID:25239
Updated: 2026/7/18
Key Features
- 1Resist impacts, dust, water, and vibration with an IP65 rating.
- 2Operate reliably across a wide -40°C to 70°C temperature range.
- 3Install and replace easily on compatible potentiometer units.
- 4Control machines ergonomically using the knurled knob head.
- 5Fit seamlessly into standard 22mm panel cutouts for compatibility.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head + mounting base for potentiometer |
| Device short name | ZB5 | Bezel material | Dark grey plastic |
| Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
| Product Compatibility | For use with Ø 6.35 mm shaft | Sale per indivisible quantity | 100 |
| Shape of signaling unit head | Round | Operator profile | knurled knob, with white) |
| Net Weight | 0.071 lb(US) (0.032 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Electrical shock protection class | Class II IEC 60536 |
| IP degree of protection | IP66 IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| IK degree of protection | IK03 conforming to IEC 50102 | Standards | EN/IEC 60947-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />EN/IEC 60947-5-5<br />UL 508<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />JIS C8201-1 |
| Product Certifications | CSA<br />GL<br />BV<br />LROS (Lloyds register of shipping)<br />DNV<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
