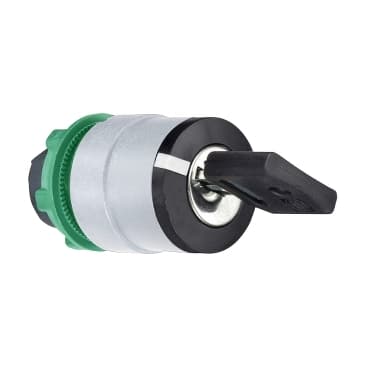

ZB5AG05C1
Product ID:25262
Updated: 2026/4/6
Key Features
- 1Ensure reliable operation with a stay-put mechanism for consistent switching. 2、Withstand harsh conditions with a wide -40°C to +70°C operating temperature range. 3、Protect against dust and water ingress with a robust IP66 enclosure rating. 4、Simplify panel assembly using the quick clip-together component mounting system. 5、Select versatile options like the black bezel with prominent button shape.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for key selector switch |
| Device short name | ZB5 | Bezel material | Plastic colour plated white |
| Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| Type of operator | Right to centre spring return | Operator profile | Black key switch |
| Operator position information | 3 positions +/- 45° | Type of Keylock | Ronis 455 |
| Key withdrawal position | Left and center | CAD overall width | 1.1 in (29 mm) |
| CAD overall height | 1.1 in (29 mm) | CAD overall depth | 2.8 in (72 mm) |
| Mechanical durability | 1000000 cycles | Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs |
| Electrical composition code | C4 6 single and double front mounting<br />C5 5 single front mounting<br />C6 5 single and double front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C3 6 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP67 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | UL 508<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-4<br />JIS C8201-1 | Product Certifications | BV<br />GL<br />CSA<br />LROS (Lloyds register of shipping)<br />UL Listed<br />DNV |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
