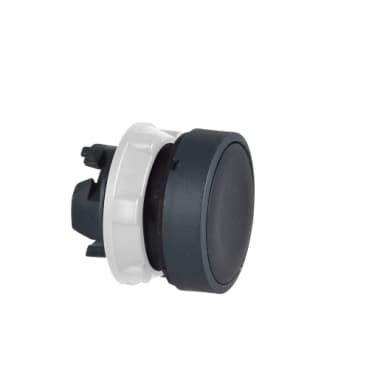

ZB5AH02C1
Product ID:25425
Updated: 2026/4/6
Key Features
- 1Choose a non-illuminated design for applications without lighting needs. 2、Integrate easily with the standard 22mm mounting diameter. 3、Operate a sleek black flush button for an ergonomic interface. 4、Ensure consistent action with the reliable spring return mechanism. 5、Deploy in harsh conditions with IP66 dust and water resistance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB5 | Bezel material | Plastic colour plated white |
| Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| Type of operator | push-push | Operator profile | Black flush, unmarked |
| CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
| CAD overall depth | 1.1 in (28 mm) | Net Weight | 0.040 lb(US) (0.018 kg) |
| Mechanical durability | 2000000 cycles | Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs |
| Electrical composition code | C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting<br />C9 3 single front mounting | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK03 conforming to IEC 50102 | Standards | IEC 60947-5-1<br />CSA C22.2 No 14<br />IEC 60947-1<br />UL 508<br />JIS C8201-5-1<br />IEC 60947-5-4<br />JIS C8201-1 |
| Product Certifications | GL<br />DNV<br />UL Listed<br />CSA<br />BV<br />LROS (Lloyds register of shipping) | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Specifications may be subject to change without notice
