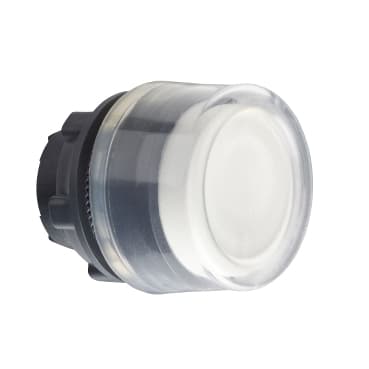

ZB5AP18
Product ID:25633
Updated: 2026/4/6
Key Features
- 1Achieve high mechanical durability with 10 million operation cycles. 2、Utilize a compact 22mm mounting diameter for space-saving panels. 3、Ensure IP66 protection against dust and water ingress. 4、Operate easily with a reliable spring return mechanism. 5、Integrate seamlessly with the Harmony XB5 series accessories.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB5 | Product Compatibility | Not compatible with legend holder |
| Bezel material | Dark grey plastic | Mounting diameter | 0.9 in (22 mm) |
| Head type | Standard | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | spring return |
| Operator profile | White flush, unmarked | Operator additional information | Clear boot for insertion of protected legend within head |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.2 in (30 mm) |
| CAD overall depth | 1.5 in (37 mm) | Net Weight | 0.051 lb(US) (0.023 kg) |
| Mechanical durability | 10000000 cycles | Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs |
| Electrical composition code | C3 6 single front mounting<br />C4 6 single and double front mounting<br />C14 2 single front mounting<br />SF2 2 single front mounting<br />SR2 2 single rear mounting | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | IEC 60947-5-1<br />UL 508<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />IEC 60947-1<br />IEC 60947-5-4<br />JIS C8201-1 | Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Specifications may be subject to change without notice
