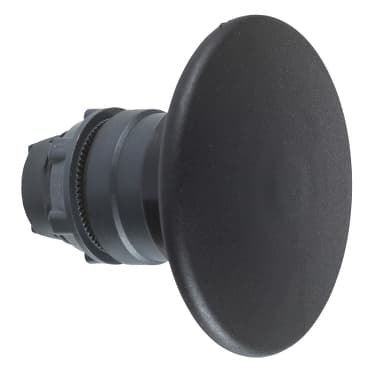

ZB5AR2
Product ID:25665
Updated: 2026/4/6
Key Features
- 1Ensure durability with IP66-rated, impact-resistant plastic construction. 2、Simplify installation using screw clamp terminal connections. 3、Apply in versatile control and signaling industrial applications. 4、Enable quick actions with an ergonomic 60mm mushroom shape. 5、Meet global standards including IEC, UL, CSA, and JIS compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB5 | Bezel material | Dark grey plastic |
| Head type | Standard | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| Type of operator | spring return | Operator profile | Black mushroom Ø 60 mm, unmarked |
| Device presentation | Basic element | CAD overall width | 2.4 in (60 mm) |
| CAD overall height | 2.4 in (60 mm) | CAD overall depth | 2.05 in (52 mm) |
| Net Weight | 0.143 lb(US) (0.065 kg) | Mechanical durability | 5000000 cycles |
| Station name | XALD 1 cut-out | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting |
| compatibility code | ZB5 | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK03 conforming to IEC 50102 | Standards | IEC 60947-1<br />IEC 60947-5-4<br />UL 508<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />JIS C8201-5-1<br />JIS C8201-1 |
| Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
