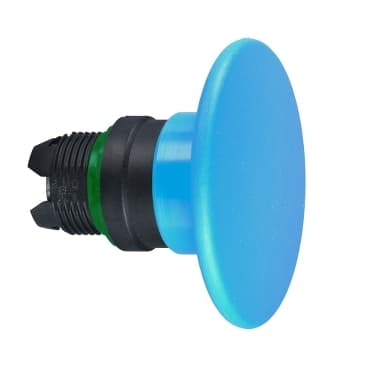

ZB5AR6
Product ID:25669
Updated: 2026/7/19
Key Features
- 1Instantly activate machinery with a single press.
- 2Ensure clear visibility using a distinct blue color.
- 3Simplify installation with standard 22.4mm mounting holes.
- 4Integrate seamlessly into the comprehensive Harmony XB5 series.
- 5Meet international RoHS standards for safety and sustainability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB5 | Bezel material | Dark grey plastic |
| Head type | Standard | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| Type of operator | spring return | Operator profile | Blue mushroom Ø 60 mm, unmarked |
| Device presentation | Basic element | CAD overall width | 2.4 in (60 mm) |
| CAD overall height | 2.4 in (60 mm) | CAD overall depth | 2.05 in (52 mm) |
| Net Weight | 0.143 lb(US) (0.065 kg) | Mechanical durability | 5000000 cycles |
| Station name | XALD 1 cut-out | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting |
| compatibility code | ZB5 | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK03 conforming to IEC 50102 | Product Certifications | GL<br />BV<br />UL Listed<br />DNV<br />CSA<br />LROS (Lloyds register of shipping) |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
