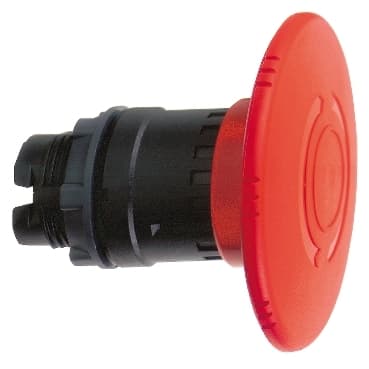

ZB5AS64
Product ID:25686
Updated: 2026/4/6
Key Features
- 1Utilize high-quality materials for long-lasting performance. 2、Simplify machine cabling to reduce installation time and costs. 3、Achieve IP65 protection against dust and water for reliable operation. 4、Resist mechanical shock and vibration to ensure secure connections. 5、Apply in control and signaling, including emergency stop devices.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head |
| Product destination | Emergency stop push-button | Device short name | ZB5 |
| Bezel material | Plastic | Head type | Standard |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | mechanical latching |
| Reset | Turn to release | Operator profile | Red mushroom Ø 60 mm, unmarked |
| Device presentation | Basic element | CAD overall width | 2.4 in (60 mm) |
| CAD overall height | 2.4 in (60 mm) | CAD overall depth | 2.2 in (57 mm) |
| Net Weight | 0.141 lb(US) (0.064 kg) | Mechanical durability | 300000 cycles |
| Station name | XALD 1 cut-out<br />XALK 1 cut-out | Electrical composition code | C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting<br />C10 4 single and double front mounting |
| compatibility code | ZB5 | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK03 conforming to IEC 50102 | Product Certifications | DNV<br />BV<br />UL Listed<br />CSA<br />LROS (Lloyds register of shipping)<br />GL |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
