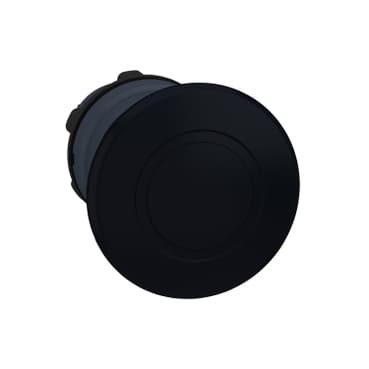

ZB5AT2
Product ID:25826
Updated: 2026/4/7
Key Features
- 1Provide an ergonomic interface for easy machine control. 2、Operate with a secure latching push-pull mechanism. 3、Resist impact, dust, water, and vibration with IP66 rating. 4、Combine easily with Harmony contact blocks for various functions. 5、Ensure reliable operation in harsh industrial environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB5 | Bezel material | Dark grey plastic |
| Head type | Standard | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| Type of operator | latching | Reset | Push-pull |
| Operator profile | Black mushroom Ø 40 mm, unmarked | Device presentation | Basic element |
| CAD overall width | 1.6 in (40 mm) | CAD overall height | 1.6 in (40 mm) |
| CAD overall depth | 2.2 in (56 mm) | Net Weight | 0.108 lb(US) (0.049 kg) |
| Mechanical durability | 500000 cycles | Station name | XALD 1 cut-out<br />XALK 1 cut-out |
| Electrical composition code | C11 3 single front mounting<br />C15 1 single front mounting<br />SF1 3 single front mounting<br />SR1 3 single rear mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C10 4 single and double front mounting | Compatibility code | ZB5 |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | IEC 60947-1<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-5-4<br />UL 508<br />JIS C8201-5-1<br />JIS C8201-1 | Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
