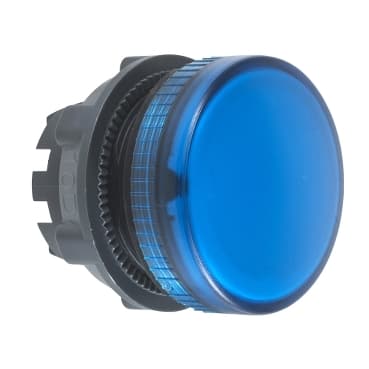

ZB5AV06
Product ID:25738
Updated: 2026/4/6
Key Features
- 1Ensure reliable operation with a wide -40 to 131°F temperature range. 2、Install easily into panels using the compact 22x22x31 mm design. 3、Get clear visibility from the bright blue BA9s base indicator light. 4、Withstand harsh conditions thanks to the durable NEMA 4X/13 enclosure. 5、Integrate seamlessly with Harmony XB5 series pushbuttons for quick setup.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for pilot light |
| Product Compatibility | BA 9s | Device short name | ZB5 |
| Bezel material | Dark grey plastic | Mounting diameter | 0.9 in (22 mm) |
| Head type | Standard | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | cap/operator or lens colour | Blue |
| Operator additional information | With plain lens | CAD overall width | 1.1 in (29 mm) |
| CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.2 in (31 mm) |
| Net Weight | 0.040 lb(US) (0.018 kg) | Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs |
| Electrical composition code | P3 front mounting BA 9s<br />P4 front mounting BA 9s and transformer<br />PF2 front mounting BA 9s | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK05 conforming to IEC 50102 |
| Standards | IEC 60947-1<br />IEC 60947-5-4<br />JIS C8201-5-1<br />IEC 60947-5-5<br />UL 508<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />JIS C8201-1 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
