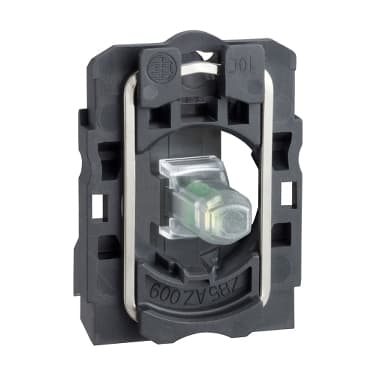

ZB5AV18B4
Product ID:25749
Updated: 2026/4/6
Key Features
- 1Utilize high-quality materials for extended operational lifespan. 2、Achieve IP65 protection against dust and water ingress. 3、Connect wiring quickly with secure screw clamp terminals. 4、Install seamlessly into Harmony XB4 control stations and enclosures. 5、Provide clear visual indication via a red flashing LED.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Complete body/light block assembly |
| Device short name | ZB5 | Fixing collar material | Plastic |
| Sale per indivisible quantity | 1 | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1 |
| Light source | Protected LED | Bulb base | Integral LED |
| Light source colour | Red | CAD overall width | 1.2 in (30 mm) |
| CAD overall height | 1.7 in (42 mm) | CAD overall depth | 1.3 in (32 mm) |
| Terminals description ISO n°1 | (X1-X2)PL | Net Weight | 0.049 lb(US) (0.022 kg) |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) EN 60947-1 | Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm |
| [Ui] rated insulation voltage | 600 V 3)EN 60947-1 | [Uimp] rated impulse withstand voltage | 6 kV EN 60947-1 |
| Signalling type | Flashing | [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
| Supply voltage limits | 19.2…30 V DC<br />21.6…26.4 V AC | current consumption | 18 mA |
| Service life | 100000 h at rated voltage and 25 °C | Surge withstand | 1 kV IEC 61000-4-5 |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Electrical shock protection class | Class II IEC 60536 |
| Standards | EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />UL 508<br />JIS C8201-1 | Product Certifications | DNV<br />UL Listed<br />GL<br />BV<br />CSA<br />LROS (Lloyds register of shipping) |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-2-6<br />8 kV in free air (in insulating parts) IEC 61000-2-6 | Electromagnetic emission | Class B IEC 55011 |
Specifications may be subject to change without notice
