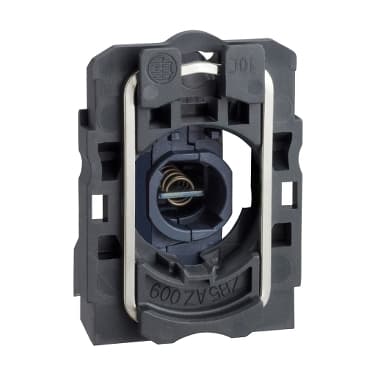

ZB5AV6
Product ID:25761
Updated: 2026/4/6
Key Features
- 1Ensure reliable signaling with high-quality LED illumination. 2、Protect components with an IP20-rated enclosure. 3、Simplify integration using screw clamp terminal connections. 4、Enhance durability with 6 kV impulse withstand voltage. 5、Maintain flexibility through compatibility with BA9s bulbs.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Complete body/light block assembly |
| Device short name | ZB5 | Fixing collar material | Plastic |
| Sale per indivisible quantity | 1 | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
| Light source | Bulb not included | Bulb base | BA 9s |
| Light block supply | Direct <2.4 W | CAD overall width | 1.2 in (30 mm) |
| CAD overall height | 1.7 in (42 mm) | CAD overall depth | 1.3 in (32 mm) |
| Terminals description ISO n°1 | (X1-X2)PL | Net Weight | 0.049 lb(US) (0.022 kg) |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 | Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 | [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| Signalling type | Steady | [Us] rated supply voltage | <= 250 V |
| Device presentation | Basic sub-assemblies | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Electrical shock protection class | Class II IEC 60536 | Standards | IEC 60947-5-1<br />CSA C22.2 No 14<br />IEC 60947-1<br />IEC 60947-5-4<br />JIS C8201-5-1<br />UL 508<br />JIS C8201-1 |
| Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
