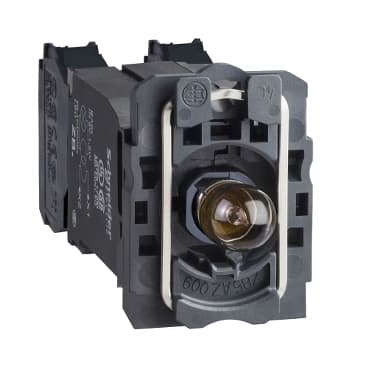

ZB5AW045
Product ID:25920
Updated: 2026/4/7
Key Features
- 1Quickly configure and replace signaling units with the ZB5AW045 mounting base. 2、Visually distinguish signaling units via illumination by BA9s base Integral LED. 3、Assemble via clips and connect with simple screw-clamp connections for secure installation. 4、Protect operators with an IP20 protection index from live circuit contact. 5、Ensure compatibility with Harmony XB5 and XB4 illuminated push button units.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Complete body/contact assembly and light block |
| Device short name | ZB5 | Fixing collar material | Plastic |
| Sale per indivisible quantity | 1 | Head type | Standard |
| Contacts type and composition | 1 NO + 1 NC | Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 | Light source | Incandescent |
| Bulb base | BA 9s | Light block supply | Via integral transformer 1.2 VA 6 V |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.7 in (42 mm) |
| CAD overall depth | 3.1 in (79 mm) | Terminals description ISO n°1 | (11-12)NC<br />(13-14)NO |
| Net Weight | 0.262 lb(US) (0.119 kg) | Contacts usage | Standard |
| Positive opening | With IEC 60947-5-1 appendix K | Operating travel | 0.06 in (1.5 mm) NC changing electrical state)<br />0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) |
| Operating force | 2 N NC changing electrical state<br />2.3 N NO changing electrical state | Operating torque | 0.44 lbf.in (0.05 N.m) NO changing electrical state |
| Mechanical durability | 5000000 cycles | Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm | Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 | [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 | [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1<br />6 A 120 V, AC-15, A600 IEC 60947-5-1<br />0.1 A 600 V, DC-13, Q600 IEC 60947-5-1<br />0.27 A 250 V, DC-13, Q600 IEC 60947-5-1<br />0.55 A 125 V, DC-13, Q600 IEC 60947-5-1<br />1.2 A 600 V, AC-15, A600 IEC 60947-5-1 | Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4<br />Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 | Signalling type | Steady |
| [Us] rated supply voltage | 220...240 V AC 50/60 Hz | Device presentation | Basic sub-assemblies |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Electrical shock protection class | Class II IEC 60536 |
| Standards | UL 508<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />IEC 60947-1<br />IEC 60947-5-4<br />JIS C8201-5-1<br />JIS C8201-1 | Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
