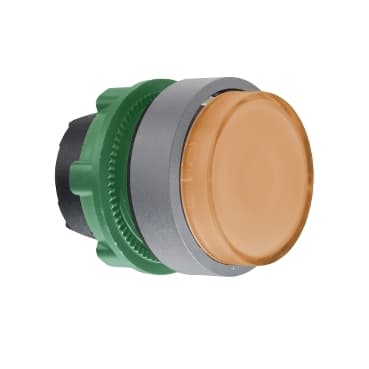

ZB5AW15C0
Product ID:25816
Updated: 2026/4/7
Key Features
- 1Achieve 10 million mechanical cycles for ultimate durability. 2、Withstand harsh conditions with IP66 and IP69K protection ratings. 3、Enhance visibility using the orange projecting illuminated design. 4、Ensure reliable operation with the spring return operator mechanism. 5、Simplify panel mounting with the compact 22 mm size.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated push-button |
| Device short name | ZB5 | Product Compatibility | BA 9s |
| Bezel material | Plastic colour plated grey | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Head type | Standard |
| Shape of signaling unit head | Round | Type of operator | spring return |
| Operator profile | Orange projecting, unmarked | Operator additional information | With plain lens |
| CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
| CAD overall depth | 1.3 in (32 mm) | Net Weight | 0.037 lb(US) (0.017 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 10000000 cycles |
| Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs | Cap/operator or lens colour | Orange |
| Marking | Unmarked | Electrical composition code | M7 6 single front mounting BA 9s<br />M8 6 single and double front mounting BA 9s<br />M9 2 single front mounting BA 9s and transformer<br />MF2 2 single front mounting BA 9s |
| Device presentation | Basic sub-assemblies | Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
| Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529 |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK05 conforming to EN 50102 |
| Standards | EN/IEC 60947-5-1<br />GB 14048.5<br />CSA C22.2 No 14<br />EN/IEC 60947-5-4<br />UL 508<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />JIS C8201-1 | Product Certifications | LROS (Lloyds register of shipping)<br />UL Listed<br />BV<br />DNV<br />CSA<br />GL |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
