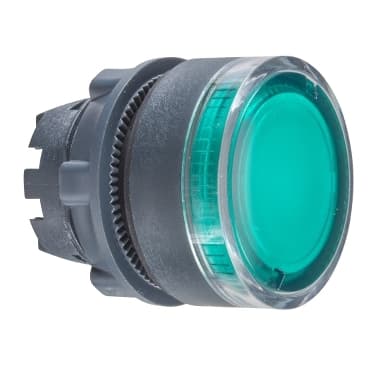

ZB5AW33
Product ID:26045
Updated: 2026/4/7
Key Features
- 1Illuminate control panels with a green flush pushbutton for BA9s bulbs. 2、Ensure reliable operation using a consistent spring return mechanism. 3、Withstand harsh industrial conditions with robust plastic construction. 4、Achieve IP66, IP67, and IP69K protection against dust and water ingress. 5、Simplify installation and maintenance via quick assembly and disassembly.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated push-button |
| Device short name | ZB5 | Product Compatibility | BA 9s |
| Bezel material | Dark grey plastic | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Head type | Standard |
| Shape of signaling unit head | Round | Type of operator | spring return |
| Operator profile | Green flush, unmarked | Operator additional information | With plain lens |
| CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
| CAD overall depth | 1.3 in (32 mm) | Net Weight | 0.040 lb(US) (0.018 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 10000000 cycles |
| Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs | Cap/operator or lens colour | Green |
| Marking | Unmarked | Electrical composition code | M7 6 single front mounting BA 9s<br />M8 6 single and double front mounting BA 9s<br />M9 2 single front mounting BA 9s and transformer<br />MF2 2 single front mounting BA 9s |
| Device presentation | Basic sub-assemblies | Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
| Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK05 conforming to IEC 62262 |
| Standards | IEC 60947-5-4<br />IEC 60947-1<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />GB 14048.5<br />JIS C8201-5-1<br />UL 508<br />JIS C8201-1 | Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
