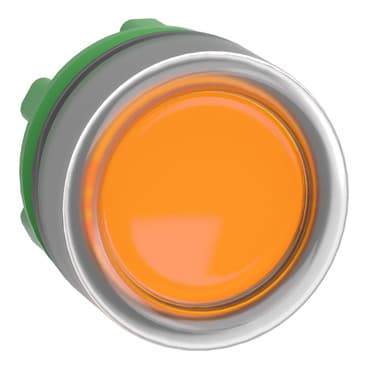

ZB5AW553C0
Product ID:25942
Updated: 2026/4/7
Key Features
- 1Ensure reliable operation with IP66 protection against dust and water ingress. 2、Maximize visibility using the orange flush design for clear status indication. 3、Achieve consistent actuation via the spring return operator without detent. 4、Deploy flexibly across a wide operating range from -40°C to +70°C. 5、Benefit from high robustness and efficiency of the modular Harmony series.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated push-button |
| Device short name | ZB5 | Product Compatibility | Universal LED |
| Bezel material | Plastic colour plated grey | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Head type | Standard |
| Shape of signaling unit head | Round | Type of operator | spring return |
| Operator profile | Orange flush, unmarked | Operator additional information | Clear boot |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.2 in (30 mm) |
| CAD overall depth | 1.5 in (37 mm) | Net Weight | 0.042 lb(US) (0.019 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 10000000 cycles |
| Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs | Cap/operator or lens colour | Orange |
| Marking | Unmarked | Electrical composition code | M1 6 single front mounting integral LED<br />M2 6 single and double front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />MR1 2 single rear mounting integral LED |
| Device presentation | Basic sub-assemblies | Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK05 conforming to IEC 62262 |
| Standards | UL 508<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />IEC 60947-1<br />IEC 60947-5-4<br />JIS C8201-5-1<br />GB 14048.5<br />JIS C8201-1 | Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
