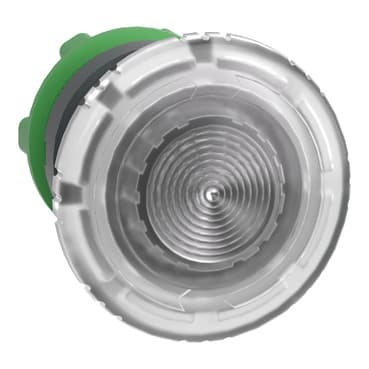

ZB5AW713
Product ID:25950
Updated: 2026/4/7
Key Features
- 1Withstand 300,000 mechanical cycles for extreme durability. 2、Feature integral LED for enhanced visibility in all environments. 3、Measure 40x40x50 mm for straightforward panel installation. 4、Offer multiple electrical codes for flexible mounting configurations. 5、Comply with EU RoHS and include an 18-month warranty.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated push-button |
| Device short name | ZB5 | Product Compatibility | Universal LED |
| Bezel material | Dark grey plastic | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Head type | Standard |
| Shape of signaling unit head | Round | Type of operator | latching |
| Reset | Turn to release | Operator profile | White mushroom Ø 40 mm, unmarked |
| CAD overall width | 1.6 in (40 mm) | CAD overall height | 1.6 in (40 mm) |
| CAD overall depth | 2.0 in (50 mm) | Net Weight | 0.049 lb(US) (0.022 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 300000 cycles |
| Main group | Mushroom head | Group of product | Mush. turn to release illum |
| Station name | XALD 1 cut-out<br />XALK 1 cut-out | Cap/operator or lens colour | White |
| Marking | Unmarked | Electrical composition code | M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />MF1 2 single front mounting integral LED<br />MR1 2 single rear mounting integral LED<br />M3 4 single front mounting integral LED<br />M4 4 single and double front mounting integral LED |
| Device presentation | Basic sub-assemblies | Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK05 conforming to EN 50102 |
| Standards | EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />UL 508<br />GB 14048.5<br />EN/IEC 60947-5-4<br />JIS C8201-1 | Product Certifications | BV<br />GL<br />CSA<br />LROS (Lloyds register of shipping)<br />DNV<br />UL Listed |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
