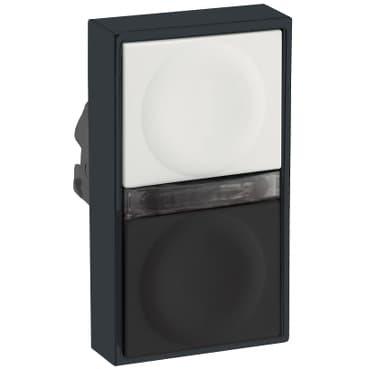

ZB5AW811723
Product ID:25964
Updated: 2026/7/25
Key Features
- 1Conform to IEC 60068-2-6/27 standards for robust performance.
- 2Achieve 2 million cycles with spring return push buttons.
- 3Utilize LED pilot lights for clear visibility.
- 4Meet IEC 61000-4-2/3/4 standards for EMC resistance.
- 5Comply with IEC 60536 and IP65 for full protection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated double-headed push-button |
| Product Compatibility | Integral LED | Device short name | ZB5 |
| Bezel material | Plastic | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Rectangular |
| Type of operator | spring return | Operator profile | Black flush, unmarked<br />White flush, unmarked |
| Operators description | White unmarked - black unmarked | CAD overall width | 1.1 in (28 mm) |
| CAD overall height | 1.9 in (47 mm) | CAD overall depth | 1.3 in (32 mm) |
| Net Weight | 0.049 lb(US) (0.022 kg) | Mechanical durability | 1000000 cycles |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 60536 |
| IP degree of protection | IP40 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK05 conforming to IEC 50102 |
| Standards | EN/IEC 60947-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />UL 508<br />JIS C8201-1 | Product Certifications | UL Listed<br />GL<br />CSA<br />BV<br />DNV<br />LROS (Lloyds register of shipping) |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
