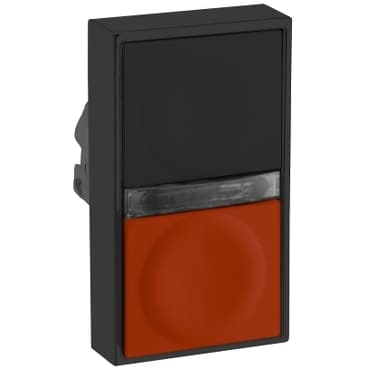

ZB5AW812743
Product ID:25965
Updated: 2026/4/7
Key Features
- 1Ensure 1,000,000 mechanical operations for long-lasting reliability. 2、Feature dual flush heads in black and red for clear signaling. 3、Provide IP40, NEMA 4X, and NEMA 13 environmental protection. 4、Offer spring-return momentary operation for quick control. 5、Measure 22mm diameter for easy panel integration.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated double-headed push-button |
| Product Compatibility | Integral LED | Device short name | ZB5 |
| Bezel material | Plastic | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Rectangular |
| Type of operator | spring return | Operator profile | Black flush, unmarked<br />Red flush, unmarked |
| Operators description | Black unmarked - red unmarked | CAD overall width | 1.1 in (28 mm) |
| CAD overall height | 1.9 in (47 mm) | CAD overall depth | 1.3 in (32 mm) |
| Net Weight | 0.049 lb(US) (0.022 kg) | Mechanical durability | 1000000 cycles |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 60536 |
| IP degree of protection | IP40 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | IK degree of protection | IK05 conforming to IEC 50102 |
| Standards | JIS C8201-5-1<br />EN/IEC 60947-5-4<br />UL 508<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />JIS C8201-1 | Product Certifications | LROS (Lloyds register of shipping)<br />DNV<br />GL<br />BV<br />UL Listed<br />CSA |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
