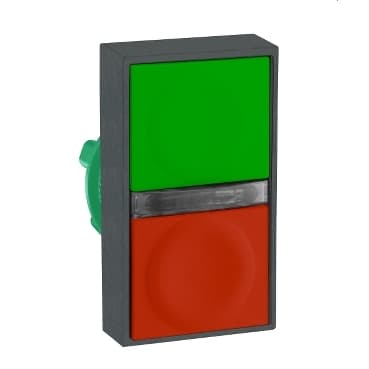

ZB5AW813743
Product ID:25966
Updated: 2026/7/25
Key Features
- 1Conform to IEC 60947-5-4 standards for high electrical reliability.
- 2Withstand ambient temperatures from -40 to +158 °F (-40 to +70 °C).
- 3Meet IEC 60068-2-27 standards for shock resistance with 30 gn and 50 gn.
- 4Comply with IEC 61000-4-3 and IEC 61000-4-4 for EMI and transient resistance.
- 5Include LED pilot lights with 6-30 Vac/Vdc voltage and 15 mA current draw.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Head for illuminated double-headed push-button |
| Product Compatibility | Integral LED | Device short name | ZB5 |
| Bezel material | Plastic | Head type | Standard |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Rectangular | Type of operator | spring return |
| Operator profile | Green flush, unmarked<br />Red flush, unmarked | Operators description | Green unmarked - red unmarked |
| CAD overall width | 1.1 in (28 mm) | CAD overall height | 1.9 in (47 mm) |
| CAD overall depth | 1.3 in (32 mm) | Net Weight | 0.049 lb(US) (0.022 kg) |
| Mechanical durability | 1000000 cycles | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II IEC 60536 | IP degree of protection | IP40 |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK05 conforming to IEC 50102 | Standards | UL 508<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />JIS C8201-1 |
| Product Certifications | LROS (Lloyds register of shipping)<br />GL<br />BV<br />DNV<br />CSA<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
